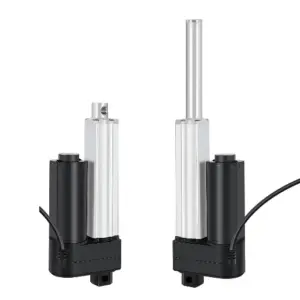

IP1200 Linear Actuator

The IP1200 is a robust 12V/24V linear actuator, delivering exceptional force up to 2500N for heavy-duty industrial, medical, and automation tasks. It features enhanced IP54 protection for demanding environments and offers comprehensive feedback options (Hall sensor, 5-wire) for precise positioning control.

Request Quote

Technical Specifications

Voltage (V)	DC 24V
No-load speed (mm/s)	5	10	13	15	20	30	40	52	66	88
Load push capacity (N)	2500	1200	1200	800	600	400	300	300	150	100
Load pull capacity (N)	2500	1200	1200	800	600	400	300	300	150	100
Statoc damping (N)	2500	1200	1200	800	600	400	200	200	100	100
Voltage (V)	DC 12V
No-load speed (mm/s)	5	10	15	20	30	40	66
Load push capacity (N)	2000	800	600	40	300	200	100
Load pull capacity (N)	2000	800	600	40	300	200	100
Statoc damping (N)	2000	800	600	40	300	200	100
Stroke length (mm)	30-1000mm, or customized
Operating temperature	o~40℃
Limit switch	Built-in
IP Grade	IP54
Operating frequency	10% max 2min continuous use
Inner tube	Aluminum tube
Color	Silver gray
Lead screw type	T type
Optional Features	Magnetic switch
	Hall sensor
	Switch signal feedback

Linear Actuators That Fit Your System: Fully Customizable for Every Detail

Different projects need different motion control setups, and regular actuators often don’t fit. Hoodland has worked on thousands of custom actuator jobs for different industries. We’ll build linear actuators that are exactly right for your system. We make parts precisely, create molds, and test everything ourselves—so your specs become a solution that works well and lasts.

Start Your Custom Project Today

Tailored to Your Exact Requirements

We don’t just adjust basic parameters—we customize every detail to match how your actuator will perform in real-world use:

Voltage Configurations: 6V, 12V, 18V, 24V DC options to match your power system
Stroke Lengths: 25mm–2000mm, optimized for your equipment’s space constraints
Force Ratings: 20N–6,000N, ensuring enough power without excess bulk
Speed Adjustments: 5mm/s–100mm/s, tailored to your cycle time and precision needs
Environmental Sealing: IP44 to IP65 protection, designed for dust, moisture, or harsh working conditions

Mounting Brackets & End Fittings: Custom designs to match your equipment’s attachment points
Cable Lengths & Connectors: Exact cable lengths and compatible connectors for plug-and-play use
Specialized Coatings: Anti-corrosion (for outdoor/chemical environments) or food-grade (for food processing) coatings to meet industry standards
Integrated Sensors: Position feedback, limit switches, or load sensors to enable smart control
Safety Features: Emergency stop functions or overload protection to align with your safety protocols

Custom Housing & Exterior Designs

Thanks to our in-house mold development capabilities, we can create fully customized exteriors to match your product’s design language or fit unique installation spaces:

Adjust actuator housing dimensions, profiles, or cutouts to fit tight or specialized equipment enclosures

Add your logo, part numbers, or color matching for a cohesive product appearance

Integrate built-in cable management, mounting lugs, or access ports directly into the housing—eliminating the need for extra adapters
