IPTT-DD Lift Column
- 3-stage lifting colimn
- Voltage:12V/24VDC
- Loads up to 150 kg

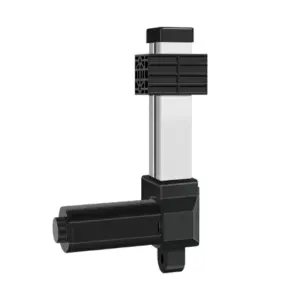

The IP3000H is a high-thrust linear actuator delivering up to 2800N of force. Designed for controlled environments (IP20), it combines significant power with a streamlined profile and low-noise operation, ideal for robust applications in industrial and medical equipment where space and quietness are considerations.
The IP3000H is a high-thrust linear actuator delivering up to 2800N of force. Designed for controlled environments (IP20), it combines significant power with a streamlined profile and low-noise operation, ideal for robust applications in industrial and medical equipment where space and quietness are considerations.
| Voltage (V) | DC 12V/24V | |||||||||
| No-load speed (mm/s) | 5 | 10 | 13 | 15 | 20 | 30 | 40 | 52 | 66 | |
| Load push capacity (N) | 2800 | 1300 | 1200 | 650 | 500 | 250 | 200 | 200 | 100 | |
| Load pull capacity (N) | 2800 | 1300 | 1200 | 650 | 500 | 250 | 200 | 200 | 100 | |
| Statoc damping (N) | 2800 | 1300 | 1200 | 650 | 500 | 150 | 150 | 60 | 15 | |
| Stroke length (mm) | 30-1000mm, or customized | |||||||||
| Operating temperature | -20℃~65℃ | |||||||||
| Limit switch | Built-in | |||||||||
| Operating frequency | 10% max 2min continuous use | |||||||||
| Inner tube | Aluminum tube | |||||||||
| Color | Silver gray | |||||||||
| Lead screw type | T type | |||||||||
