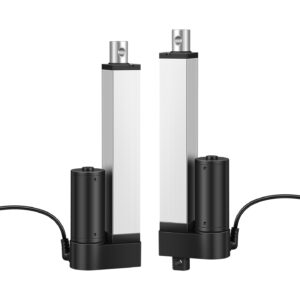

IP600 Linear Actuator

IP60 series is a compact electric actuator designed for reliability and versatility. Its simple, efficient design ensures stable and precise linear motion across various applications.

Request Quote

Technical Specifications

The IP600 is a low-noise 24V linear actuator, generating up to 600N thrust for push applications. Operating below 48dB, it’s ideal for quiet environments in medical, home, and industrial settings. It features versatile mounting, strokes up to 1000mm, and options for position feedback.

Voltage (V) DC 24V
No-load speed (mm/s) 15 30 45 60
Load push capacity (N) 600 300 200 100
Load pull capacity (N) 400 300 200 100
Statoc damping (N) 400 300 200 100
Stroke length (mm) 30-1000mm, or customized
Operating temperature o~40℃
Limit switch Built-in
Operating frequency 10% max 2min continuous use
IP Grade IP43
Inner tube Aluminum tube
Color Silver gray
Lead screw type T type
Optional Features Magnetic switch

Switch signal feedback

Linear Actuators That Fit Your System: Fully Customizable for Every Detail

Different projects need different motion control setups, and regular actuators often don’t fit. Hoodland has worked on thousands of custom actuator jobs for different industries. We’ll build linear actuators that are exactly right for your system. We make parts precisely, create molds, and test everything ourselves—so your specs become a solution that works well and lasts.

Start Your Custom Project Today

Tailored to Your Exact Requirements

We don’t just adjust basic parameters—we customize every detail to match how your actuator will perform in real-world use:

Voltage Configurations: 6V, 12V, 18V, 24V DC options to match your power system
Stroke Lengths: 25mm–2000mm, optimized for your equipment’s space constraints
Force Ratings: 20N–6,000N, ensuring enough power without excess bulk
Speed Adjustments: 5mm/s–100mm/s, tailored to your cycle time and precision needs
Environmental Sealing: IP44 to IP65 protection, designed for dust, moisture, or harsh working conditions

Mounting Brackets & End Fittings: Custom designs to match your equipment’s attachment points
Cable Lengths & Connectors: Exact cable lengths and compatible connectors for plug-and-play use
Specialized Coatings: Anti-corrosion (for outdoor/chemical environments) or food-grade (for food processing) coatings to meet industry standards
Integrated Sensors: Position feedback, limit switches, or load sensors to enable smart control
Safety Features: Emergency stop functions or overload protection to align with your safety protocols

Custom Housing & Exterior Designs

Thanks to our in-house mold development capabilities, we can create fully customized exteriors to match your product’s design language or fit unique installation spaces:

Adjust actuator housing dimensions, profiles, or cutouts to fit tight or specialized equipment enclosures

Add your logo, part numbers, or color matching for a cohesive product appearance

Integrate built-in cable management, mounting lugs, or access ports directly into the housing—eliminating the need for extra adapters
