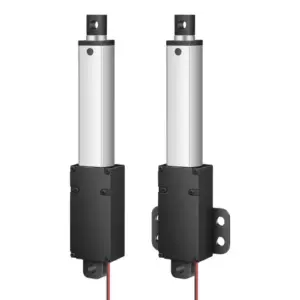

IP80 Linear Actuator

IP60 series is a compact electric actuator designed for reliability and versatility. Its simple, efficient design ensures stable and precise linear motion across various applications.

Request Quote

Technical Specifications

The IP80 delivers 200N thrust in a compact design. Its optional IP65 waterproof rating handles dust and moisture, while built-in current protection prevents overload damage. A durable solution for demanding spaces.

Voltage (V)	DC 6/12/24V
No-load speed (mm/s)	4	8	15	30
Load push capacity (N)	200	150	100	40
Load pull capacity (N)	200	150	100	40
Statoc damping (N)	200	150	50	20
Stroke length (mm)	10mm,15mm,30mm,50mm,75mm,100mm,150mm,200mm
Operating temperature	-20~65℃
IP Grade	IP43/IP65
Limit switch	Built-in
Operating frequency	10% max 2min continuous use
Inner tube	Aluminum tube
Color	Silver gray
Lead screw type	T type

Linear Actuators That Fit Your System: Fully Customizable for Every Detail

Different projects need different motion control setups, and regular actuators often don’t fit. Hoodland has worked on thousands of custom actuator jobs for different industries. We’ll build linear actuators that are exactly right for your system. We make parts precisely, create molds, and test everything ourselves—so your specs become a solution that works well and lasts.

Start Your Custom Project Today

Tailored to Your Exact Requirements

We don’t just adjust basic parameters—we customize every detail to match how your actuator will perform in real-world use:

Voltage Configurations: 6V, 12V, 18V, 24V DC options to match your power system
Stroke Lengths: 25mm–2000mm, optimized for your equipment’s space constraints
Force Ratings: 20N–6,000N, ensuring enough power without excess bulk
Speed Adjustments: 5mm/s–100mm/s, tailored to your cycle time and precision needs
Environmental Sealing: IP44 to IP65 protection, designed for dust, moisture, or harsh working conditions

Mounting Brackets & End Fittings: Custom designs to match your equipment’s attachment points
Cable Lengths & Connectors: Exact cable lengths and compatible connectors for plug-and-play use
Specialized Coatings: Anti-corrosion (for outdoor/chemical environments) or food-grade (for food processing) coatings to meet industry standards
Integrated Sensors: Position feedback, limit switches, or load sensors to enable smart control
Safety Features: Emergency stop functions or overload protection to align with your safety protocols

Custom Housing & Exterior Designs

Thanks to our in-house mold development capabilities, we can create fully customized exteriors to match your product’s design language or fit unique installation spaces:

Adjust actuator housing dimensions, profiles, or cutouts to fit tight or specialized equipment enclosures

Add your logo, part numbers, or color matching for a cohesive product appearance

Integrate built-in cable management, mounting lugs, or access ports directly into the housing—eliminating the need for extra adapters

Downloads

Related Products

IPTT-DD Lift Column

3-stage lifting colimn
Voltage:12V/24VDC
Loads up to 150 kg

IPT1100 Lift Column

2-stage
Strong and stable
Max. load 2250N
Max. speed 40mm/s

IP600 Linear Actuator

Voltage: 24VDC
Stroke:30-1000mm
Speed:15-60mm/s
Load:600-100N

IP800 Linear Actuator

Voltage:12V/24V
Stroke:30-1000mm
Load:50-1200N
Speed:5-66mm/s

IP1200 Linear Actuator

Voltage:12V/24VDC
Stroke：30-1000mm
Load:100-2500N
Speed:5-66mm/s

IP3000L Linear Actuator

Voltage:12V/24VDC
Stroke:30-1000mm
Load:150N-3000N
Speed:5-88mm/s
