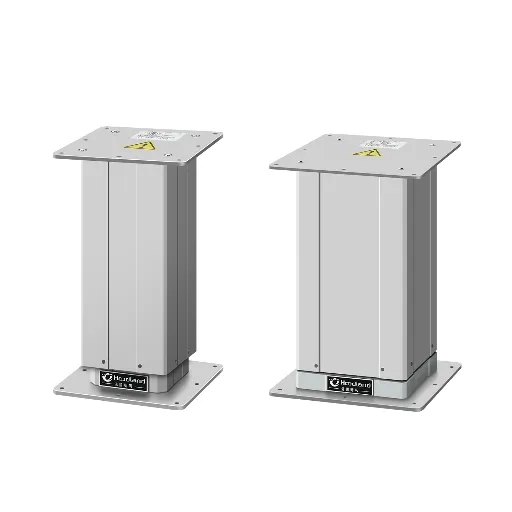

IPTT-DD Lift Column

The IPTT-DD is a low-noise electric lift column system designed for height-adjustable furniture in home and medical settings. It offers pre-configured models with generous lift ranges, delivers up to 1500N of smooth force, and features IP54 protection. The system supports optional obstacle detection (rebound/pause) for safety and can be paired with Hall sensor controllers for precise positioning.

Request Quote

Technical Specifications

The IPTT-DD is a low-noise electric lift column system designed for height-adjustable furniture in home and medical settings. It offers pre-configured models with generous lift ranges, delivers up to 1500N of smooth force, and features IP43 protection. The system supports optional obstacle detection (rebound/pause) for safety and can be paired with Hall sensor controllers for precise positioning.

Voltage	24V
No-load speed (mm/s)	4	8
Load capacity (N)	1500	800
Static damping (N)	1500	800
Voltage	12V
No-load speed (mm/s)	4	8
Load capacity (N)	800	200
Static damping (N)	800	200
Operating temperature	-20℃~60℃
Limit switch	Built-in
Operating frequency	10% max 2min continuous use
Panels	Powder coating
Optional Features	Rebound or pause when encountering obstacles
	Hall sensor
	Switch signal feedback
Color	Silver gray

Product Parameter	IPTT-DD260	IPTT-DD310	IPTT-DD360
Initial Height (mm)	260	310	360
Final Height (mm)	535	690	790
Stroke Length (mm)	275	380	430

Linear Actuators That Fit Your System: Fully Customizable for Every Detail

Different projects need different motion control setups, and regular actuators often don’t fit. Hoodland has worked on thousands of custom actuator jobs for different industries. We’ll build linear actuators that are exactly right for your system. We make parts precisely, create molds, and test everything ourselves—so your specs become a solution that works well and lasts.

Start Your Custom Project Today

Tailored to Your Exact Requirements

We don’t just adjust basic parameters—we customize every detail to match how your actuator will perform in real-world use:

Voltage Configurations: 6V, 12V, 18V, 24V DC options to match your power system
Stroke Lengths: 25mm–2000mm, optimized for your equipment’s space constraints
Force Ratings: 20N–6,000N, ensuring enough power without excess bulk
Speed Adjustments: 5mm/s–100mm/s, tailored to your cycle time and precision needs
Environmental Sealing: IP44 to IP65 protection, designed for dust, moisture, or harsh working conditions

Mounting Brackets & End Fittings: Custom designs to match your equipment’s attachment points
Cable Lengths & Connectors: Exact cable lengths and compatible connectors for plug-and-play use
Specialized Coatings: Anti-corrosion (for outdoor/chemical environments) or food-grade (for food processing) coatings to meet industry standards
Integrated Sensors: Position feedback, limit switches, or load sensors to enable smart control
Safety Features: Emergency stop functions or overload protection to align with your safety protocols

Custom Housing & Exterior Designs

Thanks to our in-house mold development capabilities, we can create fully customized exteriors to match your product’s design language or fit unique installation spaces:

Adjust actuator housing dimensions, profiles, or cutouts to fit tight or specialized equipment enclosures

Add your logo, part numbers, or color matching for a cohesive product appearance

Integrate built-in cable management, mounting lugs, or access ports directly into the housing—eliminating the need for extra adapters

Downloads

IPTT-DD260ZL
IPTT-DD260DL
IPTT-DD310ZL
IPTT-DD310DL
