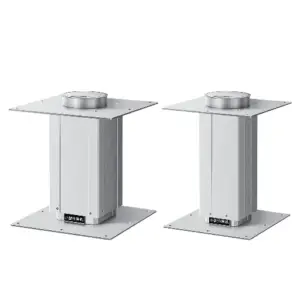

IPTT-SD Manual Lift Column
- 3-stage lifting colimn
- Manual control
- Static load capacity 3000N
The IPTT-SD is a manually operated lift column, offering a robust and cost-effective height adjustment solution for furniture and medical equipment. With a high 3000N load capacity and three standard size models, it provides reliable, maintenance-free support where powered movement is not required.
The IPTT-SD is a manually operated lift column, offering a robust and cost-effective height adjustment solution for furniture and medical equipment. With a high 3000N load capacity and three standard size models, it provides reliable, maintenance-free support where powered movement is not required.
| Regular product | Initial Height (mm) | Final Height (mm) | Stroke Length (mm) | Static Bearing Capacity (N) |
| IPTT-SD260 | 260 | 540 | 280 | 3000 |
| IPTT-SD310 | 310 | 710 | 400 | 3000 |
| IPTT-SD360 | 360 | 840 | 480 | 3000 |
| *Initial height is the height of upper to lower inon plate, not including handle box. Other specifications, sizes can be customized | ||||
